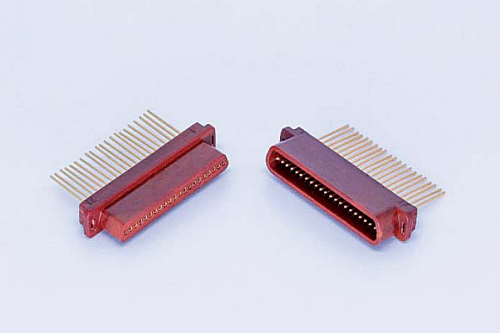

E42D series printed circuit board electrical connector
Brand Name： E-World Place of Origin: Sichuan,China Model Number： E42D Relative humidity: 90% to 95% at 40±2℃ Atmospheric pressure: 101.3KPa to 1.33Pa Operating temperature： -55℃ to 125℃ Rated current: 2A Withstand voltage: Under standard conditions: 500VUnder humid conditions: 250VUnder low pressure conditions: 250V（1.33Pa low-pressure condition） Insulation resistance: Under standard conditions: ≥ 1000MΩUnder high-temperature conditions: ≥ 50MΩUnder humid conditions: ≥ 10MΩ Contact resistance: Before the life test: ≤ 8mΩAfter the life test: ≤ 10mΩ Implementation standards: Enterprise Military Standard: Q/Jc129-95Reliability standard: Q/Jc20078-2007Aerospace standard: Q/QJA20113/83-2018...
Category:
Describe
| Brand Name： | E-World |
| Place of Origin: | Sichuan,China |
| Model Number： | E42D |
| Relative humidity: | 90% to 95% at 40±2℃ |
| Atmospheric pressure: | 101.3KPa to 1.33Pa |
| Operating temperature： | -55℃ to 125℃ |
| Rated current: | 2A |
| Withstand voltage: | Under standard conditions: 500V Under humid conditions: 250V Under low pressure conditions: 250V（1.33Pa low-pressure condition） |
| Insulation resistance: | Under standard conditions: ≥ 1000MΩ Under high-temperature conditions: ≥ 50MΩ Under humid conditions: ≥ 10MΩ |
| Contact resistance: | Before the life test: ≤ 8mΩ After the life test: ≤ 10mΩ |
| Implementation standards: | Enterprise Military Standard: Q/Jc129-95 Reliability standard: Q/Jc20078-2007 Aerospace standard: Q/QJA20113/83-2018 |
