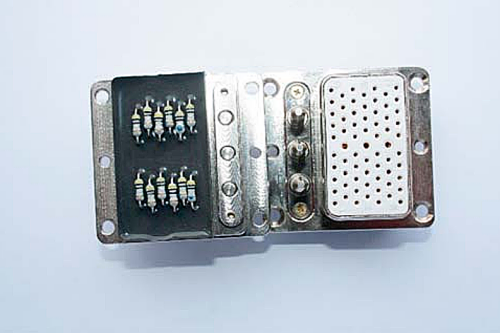

E61、E61B series rectangular connector
Brand Name： E-World Place of Origin: Sichuan,China Model Number： E61、E61B Two forms of housing for the connectors: single-row and double-row. The double-row housing can be freely combined to accommodate multiple contact configurations. Rated current: 5A (with 1.0mm diameter contacts)10A (with 1.5mm diameter contacts) Operating temperature： -55℃~125℃ Insulation resistance： At standard conditions, insulation resistance > 5000MQAt high temperature conditions, insulation resistance > 500MQAt humid conditions, insulation resistance > 50MQ Note： 1.The floating installation product (with a one-sided float of 0.8mm) is designed with the capability to compensate for installation errors. It is suitable for docking applications in spacecraft modules. 2.The floating installation product adopts a hyperbolic socket design, allowing for smooth ins...
Describe
| Brand Name： | E-World |
| Place of Origin: | Sichuan,China |
| Model Number： | E61、E61B |
| Two forms of housing for the connectors: |
single-row and double-row. The double-row housing can be freely combined to accommodate multiple contact configurations. |
| Rated current: | 5A (with 1.0mm diameter contacts) 10A (with 1.5mm diameter contacts) |
| Operating temperature： | -55℃~125℃ |
| Insulation resistance： | At standard conditions, insulation resistance > 5000MQ At high temperature conditions, insulation resistance > 500MQ At humid conditions, insulation resistance > 50MQ |
| Note： |
1.The floating installation product (with a one-sided float of 0.8mm) is designed with the capability to compensate for installation errors. It is suitable for docking applications in spacecraft modules. 2.The floating installation product adopts a hyperbolic socket design, allowing for smooth insertion and removal with reliable contact. |
